Model: LY-SN551E

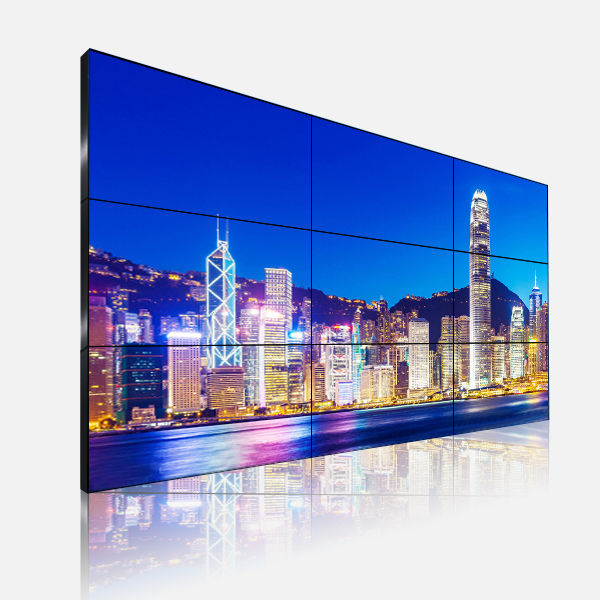

Name: 55 Inch Supper Narrow Bezel LCD Video Wall (bezel 5.3mm)

Description: ● All screens can display the same or different signal sources on a single screen.
● Combinations :2×2、2×3、3×3、3×4、4×4、5×4、5×5 or any combination customized.
● Support 7×24 hours, 365 days of continuous

  • Attribute
  • Picture
  • Customer




Specifications Model No LY-SN551E
Panel type   SAMSUNG TFT-LED
Resolution 1920*1080
bezel 5.3mm (UP:3.6mm;  DOWN:1.7mm;  LEFT :3.6mm;  RIGHT:1.7mm)
display area 1209.6mm(H) x 680.4mm(V)
Pixel pitch (HxV) 0.63(H)x0.63(V)
Brightness 500CD/㎡
Contrast 4500:1
Visual Angle (H/V) 178(H/V)
Response Time 8MS
 Input and output VGA input
DVI input 1
HDMI input 1
BNC input 2
BNC output 1
RS232 output 1
 Power supply  AC voltage AC100~240V;50/60HZ
 Power consumption ≤220W
 Standby
Power
Consumption
<3W
 Temperature 0℃~40℃
 Physical  Weight 35KG
 Menu language   Chinese /English
  Body dimension(Lx W x H)mm 1215.5mm(H) x686.3mm(V)
 Installation  Wall-mounted, floor stand, cabinet installation optional
