| Model： | |

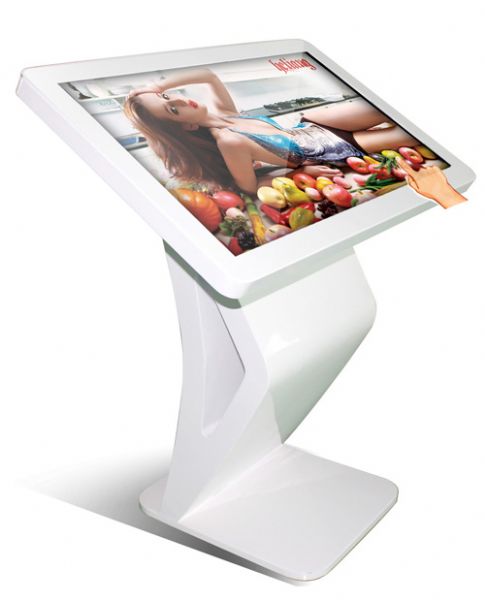

| Name： | Floor-stand touch screen monitor all-in-one |
| Description： | 1. Touch the high sensitivity, fast, no drift phenomenon; 2. Professional chip and processing technology, to ensure high quality; 3. The industrial-grade all-in-one PC motherboard, the function is all ready, more stable performance |
- Attribute
- Picture
- Customer
| Panel Specification | Model | LY-T4200LD | LY-T4700LD | LY-T5500LD | |||
|
Display Size |
42" | 47" | 55" | ||||
|
Display scale |
16:9 | 16:9 | 16:9 | ||||
| Brightness | 400cd | 500cd | 500cd | ||||
| Contrast | 3000:1 | 4000:1 | 4000:1 | ||||
| Display area | 930.2mm(W)×523mm(H) | 1041mm(W)×586mm(H) | 1211mm(W)×682mm(H) | ||||
| PC configuration | Grade | Processor | Memory | HDD | graphics card | Operation system | |
| Standard | Intel Dual core i3 | 2G | 500G | Intel Hd video card | WIN7/10 | ||
| midium | Intel Dual core i5 | 4G | 500G | Intel Hd video card | WIN7/10 | ||
| High | Intel Dual core i7 | 8G | 1T | Intel Hd video card | WIN7/10 | ||
| Android | MSD6369/901 | DDR3 1G | 4G | Integrated graphics | Android4.2 | ||
| PC Ports | Ports | USB 2.0 * 4 | |||||
| The network card * 1 | |||||||
| VGA * 1 | |||||||
| HDMI * 1 | |||||||
| Audio I/O Port * 1 | |||||||
| DC 12V power * 1 | |||||||
| Touch screen | Touch technology | Ir, optical, nano touch | |||||
| Touch way | Finger, pen, gloves or other opaque objects | ||||||
| life | Touch more than 60 million times | ||||||
| The fuselage | The fuselage material | Cold rolled steel sheet | |||||
| casing material | Aluminum alloy + toughened glass | ||||||
| SIZE | 1039*633*1066mm | 1158*700*1066mm | 1322*804mm*1066mm | ||||
| Weight | TBD | TBD | TBD | ||||
| Others | Speaker | 10W*2 | |||||
| Power | AC 100－240V | ||||||
| attachment | The power cable, manual, warranty card, certificate of approval, hanging bracket | ||||||
