| Model： | LY-SN551E |

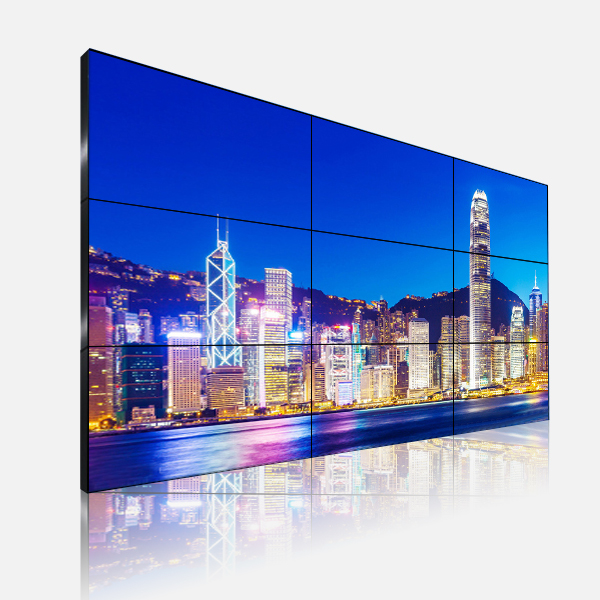

| Name： | 55 inch ultra narrow edge 5.3 mm gap LCD splicing screen |
| Description： | 1.Imported industrial LCD panels, splicing gap is 5.3 mm; 2.Support 1920 * 1080 * 2 k or 4 k resolution; Support 365 days 24 hours of continuous operation; 3. It can realize single, full screen splicing, any combination splicing |
- Attribute
- Picture
- Customer
| Specifications | Model No | LY-SN551E |
| Panel type | SAMSUNG TFT-LED | |
| Resolution | 1920*1080 | |
| bezel | 5.3mm (UP:3.6mm; DOWN:1.7mm; LEFT :3.6mm; RIGHT:1.7mm) | |
| display area | 1209.6mm(H) x 680.4mm(V) | |
| Pixel pitch (HxV) | 0.63（H）x0.63（V） | |
| Brightness | 450CD/㎡ | |
| Contrast | 4500:1 | |
| Visual Angle (H/V) | 178（H/V） | |
| Response Time | 6MS | |
| Input and output | VGA input | 1 |
| DVI input | 1 | |
| HDMI input | 1 | |
| BNC input | 2 | |
| BNC output | 1 | |
| RS232 output | 1 | |
| Power supply | AC voltage | AC100~240V;50/60HZ |
| Power consumption | ≤220W | |
|
Standby Power Consumption |
＜3W | |
| Temperature | 0℃~40℃ | |
| Physical | Weight | 35KG |
| Menu language | Chinese /English | |
| Body dimension(Lx W x H)mm | 1215.5mm(H) x686.3mm(V) | |
| Installation | Wall-mounted, floor stand, cabinet installation optional |
