Home > Products > LCD splicing wall > ultra narrow edge
| Model： | LY-LN471E |

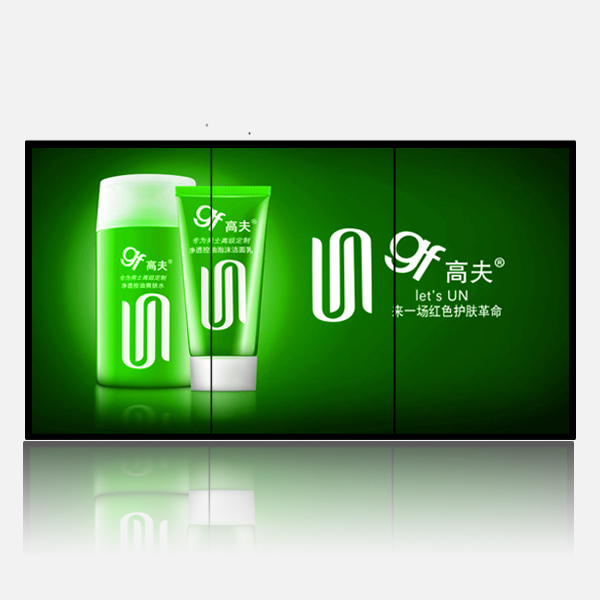

| Name： | 47 inches ultra narrow side 4.9 mm gap LCD splicing screen |
| Description： | 1.Imported industrial LCD splicing screen, bilateral flat-fell seam can be up to 4.9 mm; 2.Support 1920 * 1080 * 2 k or 4 k resolution; 7 * 24 hours a day, 365 days continuous boot; 3. The signal through access to all kinds of ma |
- Attribute
- Picture
- Customer
| Specifications | Model No | LY-SN471E |
| Panel type | LG TFT-LED | |
| Resolution | 1920*1080 | |
| bezel | 4.9mm (UP:3.2mm; DOWN:1.7mm; LEFT :3.2mm; RIGHT:1.7mm) | |
| display area | 1039.68(H)×584.82(H)mm | |
| Pixel pitch (HxV) | 0.180（H）×0.541（V） | |
| Brightness | 500CD/㎡ | |
| Contrast | 4000:1 | |
| Visual Angle (H/V) | 178（H/V） | |
| Response Time | 6MS | |
| Input and output | VGA input | 1 |
| DVI input | 1 | |
| HDMI input | 1 | |
| BNC input | 2 | |
| BNC output | 1 | |
| RS232 output | 1 | |
| Power supply | AC voltage | AC100~240V;50/60HZ |
| Power consumption | ≤200W | |
|
Standby Power Consumption |
＜3W | |
| Temperature | 0℃~40℃ | |
| Physical | Weight | 33KG |
| Menu language | Chinese /English | |
| Body dimension(Lx W x H)mm | 1044.9mm(H)×590.0mm(V) | |
| Installation | Wall-mounted, floor stand, cabinet installation optional |
