| Model： | LY-AH4200/AH4200N |

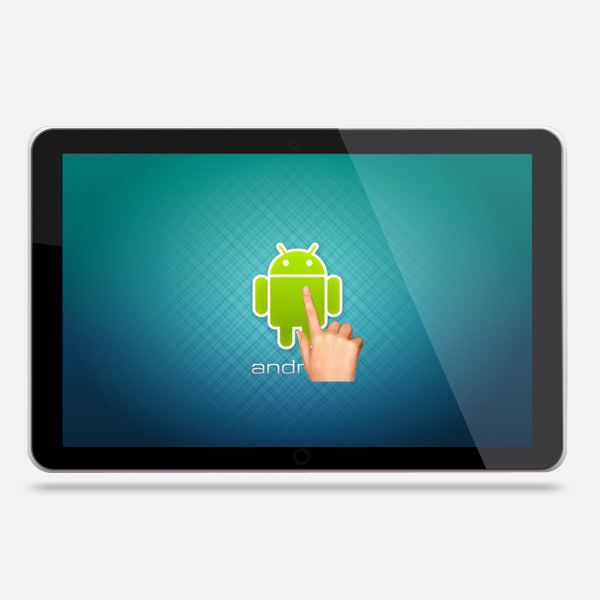

| Name： | 42 inch Wall mount LCD Digital Signage |
| Description： | 1. The scheme of professional LCD screen and sleek slim; 2. Support 1080 p hd broadcast, flow subtitles, split screen function; 3. Online support remote release management, the use of flexible cable, WIFI, 3 g network running. |
- Attribute
- Picture
- Customer
| Standalone version features | Network version features | ||
| Model No | LY-AH4200 | Model No | LY-AH4200N |
| Ports | 1xUSB2.0,1xCF,1xSD | Ports | 1xUSB2.0,1xSATA,1xSD |
| storage medium | U disk ,CF card,SD card | storage medium |
U disk ,CF card,SD card, SD Card, HDD |
| Video format |
MPG,MPG-1,MPG-2,MPG-4,AVI,MP4 DIV,TS,TRP,MKV,WMV,RM,RMVB |
Video format |
MPG,MPG-1,MPG-2,MPG-4,AVI,MP4, TS,MKV,WMV |
| Maximum resolution | 1920*1080 | Maximum resolution | 1920x1080 |
| Image format | JPEG,PNG,BMP | Image format | GIF,JPEG,PNG,BMP |
| Audio output | 2x5W | Audio output | 2x5W |
| Max frame rate | 30frm/s | Audio format | MP3,24bit linear PCM7.1 |
| The audio sampling rate | 32KHZ,44.1KHZ,48KHZ,96KHZ | operating environment | WIN7/10,android |
| The largest color depth | 24bit | Networking way | RJ45 Port, wifi(optional), 3G(Optional) |
| The largest stream | USB2.0 device：30MB/S | Program update way | Network remote update, U disk update |
|
Panel Specification |
Panel size | 42”LCD Panel | |
| Display area | 932×525mm(W*H) | ||
| Display mode | 16:9 | ||
| Back light | LED | ||
| Resolution | 1920×1080 | ||
| Display color | 16.7M | ||
| Brightness (nits) | 400cd/m2 | ||
| Brightness (nits) | 4000:1 | ||
| Visual angle | 175°(H) / 175°(V) | ||
| Response time | 6ms | ||
| Color system | PAL/NTSC/SECAM | ||
| Life(hrs) | 60000 | ||
| Power supply | Power supply | AC100V～240V | |
| Maximum power consumption | ≤160W | ||
| Standby power consumption | ≤3W | ||
| Temperature | Working temperature | 0℃～40℃ | |
| Storage temperature | -20℃～60℃ | ||
| Working humidity | 10%～90% | ||
| Storage humidity | 10%～90% | ||
| Appearance | Installation | Wall-mounted | |
| Body dimension(Lx W x H)mm | 970.59*642*58（mm） | ||
| Net weight | 26KG | ||
